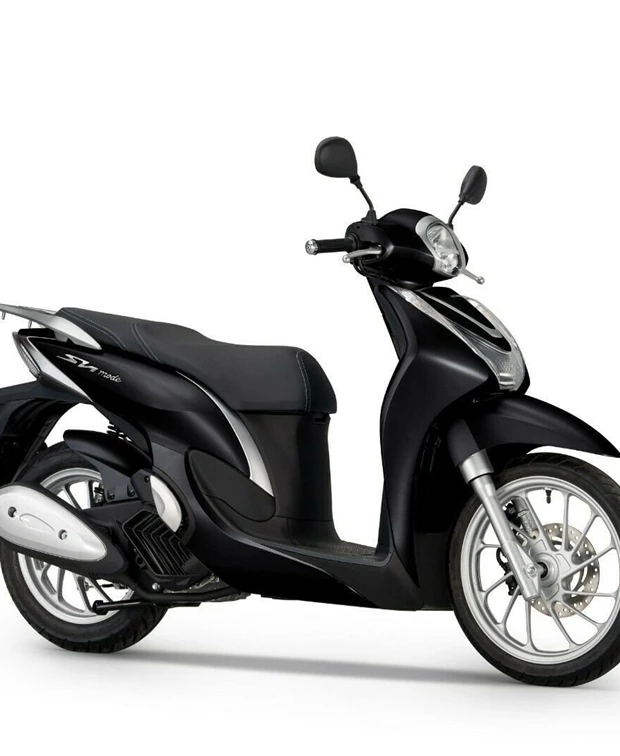

Honda SH Mode 125 (2025)
TECHNICAL DATA
Cylinders
1
Strokes
4-Stroke
Valves
OHC
Cooling
liquid
Displacement
125 ccm
Bore
53,5 mm
Stroke
55,5 mm
Max. Power Output
11,4 HP
Rpm at Max. Power Output
8500 rpm
Max. Torque
12,1 Nm
Rpm at Max. Torque
5000 rpm
Compression Ratio
11,5
Fuel system
Injection
Starter
Electric
Clutch Type
Centrifugal force
Ignition
Digital, Transistor
Final Drive
Belt
Transmission Type
Variomatic
Frame
Steel
Steering axis angle
74 degree
Trail
69,5 mm
Front suspension
Telescopic fork
Diameter
33 mm
Travel
89 mm
Rear suspension
Unit Swing
Shock absorber
Dual Shock
Adjustment
Preload
Front brake
Single disk
Diameter
220 mm
Piston
Three pistons
Rear brake
Drum
Diameter
130 mm
Assistance systems
Combined Brake System
Front tyre width
80 mm
Front tyre height
90 %
Front tyre diameter
16 inch
Rear tyre width
100 mm
Rear tyre height
90 %
Rear tyre diameter
14 inch
Length
1950 mm
Width
670 mm
Height
1100 mm
Wheelbase
1305 mm
Seat Height from
765 mm
Kerb Weight
118 kg
Fuel Tank Capacity
5,5 l
License
A1
Range
250 km
combined CO2 emissions
50 g/km
Combined fuel consumption
2,2 l/100km
Equipment
LED-Headlights
Matching motorbikes
All information without guarantee. Typing errors, mistakes and prior sale reserved.
